QuikSep Size Exclusion Resins
Gel filtration chromatography separates molecules in the liquid mobile phase based on their physical sizes. Molecules with diameters larger than the pore size of the packing material cannot enter the pores and are completely excluded, passing quickly through the column and eluting first. In order of molecular weight, smaller molecules are more able to enter the pores of the packing material and elute later, thus achieving separation. Gel filtration chromatography is also known as size exclusion chromatography or molecular sieve chromatography.
Online

Gel filtration chromatography separates molecules in the liquid mobile phase based on their physical sizes. Molecules with diameters larger than the pore size of the packing material cannot enter the pores and are completely excluded, passing quickly through the column and eluting first. In order of molecular weight, smaller molecules are more able to enter the pores of the packing material and elute later, thus achieving separation. Gel filtration chromatography is also known as size exclusion chromatography or molecular sieve chromatography.




Application strategy of gel filtration chromatography medium

● Gel filtration chromatography is commonly used for subsequent purification stages with fewer impurities.

● Gel filtration chromatography is used for the purification of samples with small volumes.

● It can also be used in the rough purification stage during separation (such as desalination).

● Only one type of buffer is required for gel filtration chromatography separation, and the type of buffer has little effect on the separation efficiency. Adding 150 mM sodium chloride to the buffer can effectively reduce the nonspecific adsorption of the target protein.

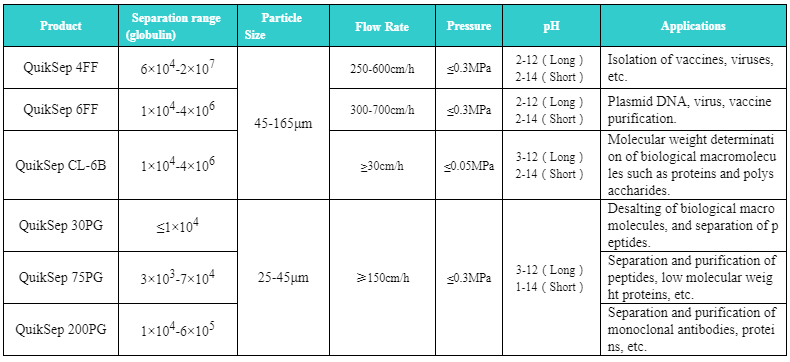

Product

Separation range

(globulin)

Particle

Size

Flow Rate

Pressure

pH

Applications

QuikSep 4FF

6×104-2×107

45-165μm

250-600cm/h

≤0.3MPa

2-12(Long)
2-14(Short)

Isolation of vaccines, viruses, etc.

QuikSep 6FF

1×104-4×106

300-700cm/h

≤0.3MPa

2-12(Long)
2-14(Short)

Plasmid DNA, virus, vaccine purification.

QuikSep CL-6B

1×104-4×106

≥30cm/h

≤0.05MPa

3-12(Long)
2-14(Short)

Molecular weight determination of biological macromolecules such as proteins and polysaccharides.

QuikSep 30PG

≤1×104

25-45μm

150cm/h

≤0.3MPa

3-12(Long)
1-14(Short)

Desalting of biological macromolecules, and separation of peptides.

QuikSep 75PG

3×103-7×104

Separation and purification of peptides, low molecular weight proteins, etc.

QuikSep 200PG

1×104-6×105

Separation and purification of monoclonal antibodies, proteins, etc.
